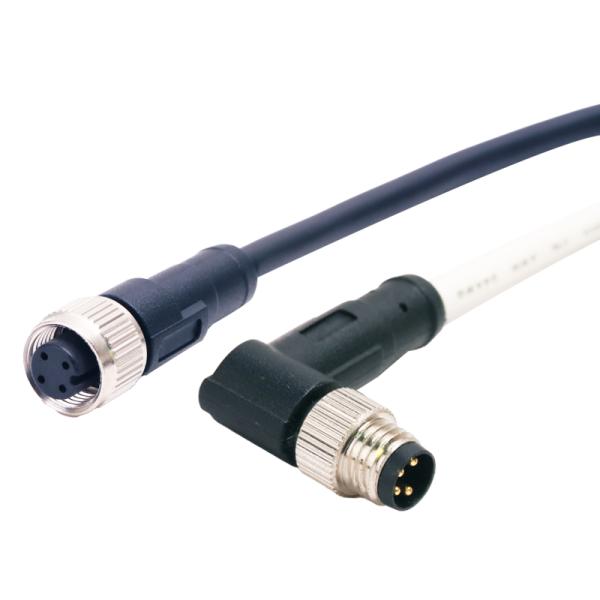

M8 Waterproof IP68 4 Pins Female To Male Molded Automotive Connector With Cable
Product description
The M8 is a common connector at the field level, although to date only for the transmission of signals.
M8 Connector, Standard Circular Connectors, Wire-to-Wire, 4 Position, Sealable, Wire & Cable, 3A Contact Current Rating (Max).
A wide range of M8 connector variations available in IP67/IP68 cable mount and panel mount options used in demanding industrial applications.
Quick Details
Type:M8
Application:Automotive, Sensor or Automation
Gender:male/female
Product name:M8 A coding R/A female to female waterproof cable
Rated current:4A
Contacts:3,4,5,6 8pins are available
Coupling:Threaded coupling
Shielding:un-alaibable
IP degree:IP67/IP68
Description
Anti-vibration locking screw design
RoHS & REACH Compliance
There is PG7 and PG9 for choose,PG7 subitable OD4-6mm cable,PG9 suitabble OD6-8mm cable
Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C
Standard:IEC61076-2-101
Material
Overmold:Transparent TPU
Insert:TPU+GF
Material of Housing: Brass Nickel Plated
Cable Jacket: PVC or PUR
Wire Gauge: 24AWG or 26AWG
Material of Insert: PA+GF, UL9V_0
Material of Contacts: Male brass, female phosphor Bronze, Gold Plated
| Core Insulation of Connecting Leads | PVC, PETP, diameter 1.0 mm to 1.55 mm |
| Protection Class | IP 67 (total protection from dust and temporary immersion in water - up to 1 meter for up to 30 min) |
| Contact Material | Cu Sn |
| Contact Surface Material | Gold |
| Contact Bearer Material | Polyamide |
| Housing Material | Polyamide |
| Coupling Nut Material | Zn Ai/Ni |
| O-Ring | Viton/NBR |
| Operating Temperature | -25 C to + 70 C (-13 F to 158 F) |
| Type of Termination | Pin Penetration |
Packaging & Shipping
Usually standard size 38*32*32cm/CTN,1000pcs/CTN
approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
Company Information
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on ,they are equivalent to Phoenix, Binder, Lumberg and Molex etc.
Our philosophy and purpose is: Customer Foremost, Service First,Quality first.Our products mainly exported to all over the world.And get a high degree approval and recognition from our customers.
Sincerely to work with you together in the near future.
